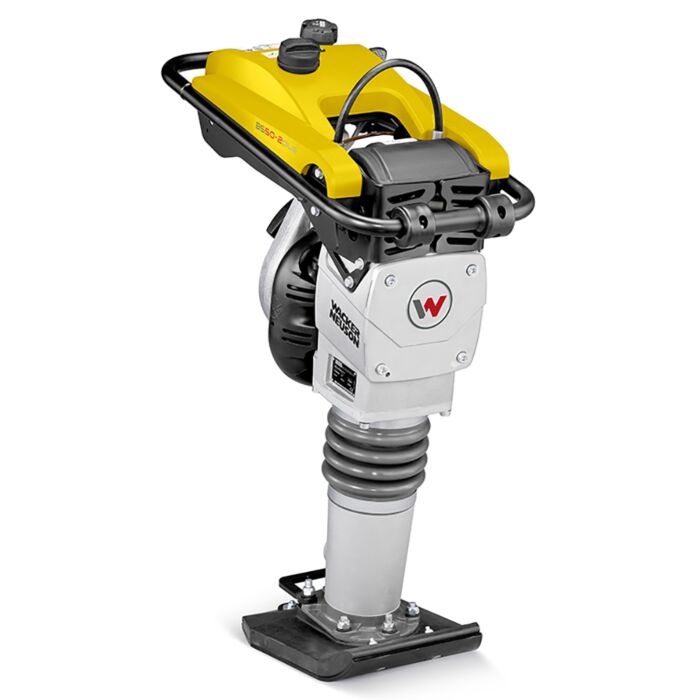

Wacker Neuson BS 50-2plus Trench Rammer 280mm/11Inch
Product Information
The Wacker Neuson BS50-2plus 11in 2-Stroke Rammer stands out for its superior performance and efficiency. Designed for demanding compaction tasks, this rammer is a reliable choice for construction professionals who require durability and high productivity.
Key Features:
-
High Compaction Performance: Equipped with an impact force of 16 kN and a shoe stroke of 64 mm, the BS50-2plus achieves effective compaction. It operates at 687 blows per minute with a forward running speed of 9.5 m/min, ensuring excellent productivity.
-
Durable Construction: With an operating weight of 59 kg and an area capacity of 159 m²/h, the rammer is built for rugged use and long-term performance.
-
Optimised Operation: Powered by the WM80 engine and featuring a separate oil lubrication system, the rammer ensures that fuel is mixed at the optimum ratio. It includes an intelligent electronic automatic low oil shutoff and automatic idling shutdown for enhanced reliability.
-
User-Friendly Design: The rammer includes a 4-stage air cleaner system, featuring a cyclone, paper filter, and 2 foam air cleaners. It has a single lever for starting, idling, and stopping, and operates within a temperature range of -10 to 40°C.
-
Environmental Compliance: Complies with sound power standards with a guaranteed sound power level of 108 dB(A) and meets HAV summation standards with an average value of 8.9 m/s², ensuring reduced vibration impact.
The Wacker Neuson BS50-2plus 11in 2-Stroke Rammer combines advanced features with robust performance, making it an excellent tool for efficient compaction and reliable operation on the job site.
Specification
| SKU | 5100030596 |
|---|---|
| Barcode | 5061043461444 |
| Stroke | 2-Stroke |
| Ramming Shoe Width | 280mm |
| Forward Running | 9.5 m/min |
| Power of Impact | 16.0 kN |
| Brand | Wacker Neuson |
| Model | BS 50-2plus |
| Number Of Blows | 687.0 1/min |
| Area Capacity | 159.0 m2/h |
| Forward Running | 9.5 m/min |
| Power of Impact | 16.0 kN |
| Length | 673.0 mm |
| Length Ramming Shoe | 340.0 mm |
| Width | 343.0 mm |
| Width Ramming Shoe | 280.0 mm |
| Height | 940.0 mm |
| Weight | 59.000000 |
| Sound Power LWA (Guaranteed) | 108.0 dB(A) |
| Sound Power LWA (Standard) | EN 500-4 |
| HAV Summation (Average Value) | 8.9 m/s2 |
| Display Equipment | Operating hours counter |
| Operating Elements | Pushbutton OFF |
| Oil Specification | SAE 10W-40 |
| Oil Volume | 0.7 l |
