5100061218

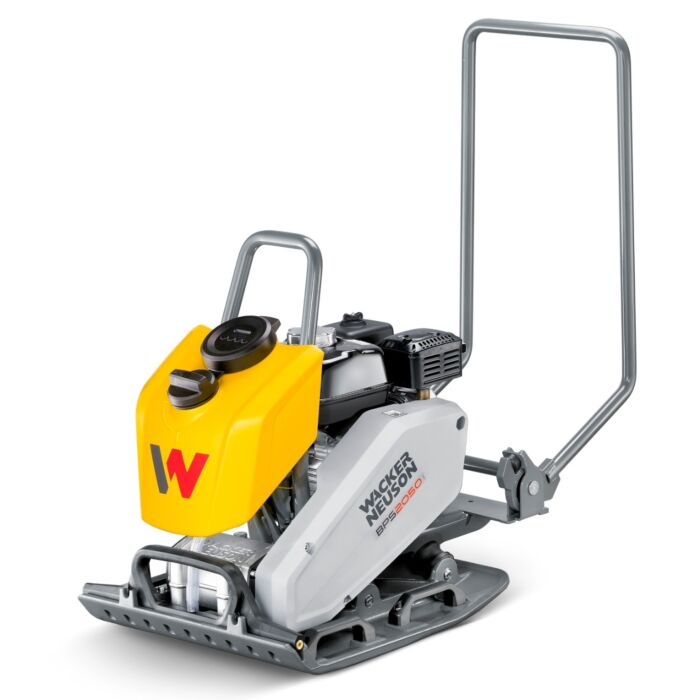

Wacker Neuson BPS2050AW 500mm/20 Inch Plate with Water Kit (Honda Engine)
In stock
£1,590.00 £1,325.00
Frequently Bought Together
- This Item: £1,590.00 £1,325.00
- Wacker Neuson Paving Mat Kit For 500mm Plate - BPS1550, BPS2050, DPS2050H £348.00 £290.00
- Wacker Neuson Wheel Kit For BPS Plates - BPS1550, BPS2050 £330.00 £275.00
Product Information
The Wacker Neuson BPS2050Aw is engineered for superior compaction of soil and asphalt, offering robust performance and exceptional handling. Designed for professional use, this vibratory plate excels in delivering clean finishes and handling challenging conditions with ease.
Key Features:
- Powerful Compaction: Delivers a centrifugal force of 20 kN and an area capacity of 750 m²/h, ensuring effective compaction for various surfaces, including fresh asphalt and mixed soils.
- Enhanced Manoeuvrability: Equipped with a specially shaped base plate and a centrally mounted guide handle, it provides excellent turning ability and precise control, even on curbs and uneven surfaces.
- Comfortable Operation: Achieves low hand-arm vibrations of less than 5 m/s², which reduces operator fatigue and allows for extended, comfortable working sessions.
- Durable Construction: Built to withstand continuous professional use, featuring a strong base plate and robust frame for long-lasting performance.
- Efficient Dust Control: Includes a large water tank (8 liters / 2.11 gallons) with an integrated sprinkler system, ensuring effective dust control and optimal compaction results.
The BPS2050Aw combines high compaction force with user-friendly features, making it an excellent choice for demanding compaction tasks on construction sites.
Specification
| SKU | 5100061218 |
|---|---|
| Barcode | 5061043462274 |
| DIrection | Single Direction |
| Brand | Wacker Neuson |
| Model | BPS2050Aw |
| Weight | 99.100000 |
| Centrifugal Force | 20 kN |
| Area Capacity | 750.0 m2/h |
| Forward Running | 25.0 m/min |
| Gradeability | 36.4 % |
| Vibrations (Hz) | 98.0 Hz |
| Length Baseplate | 599.0 mm |
| Width Baseplate | 500.0 mm |
| Height Cover frame | 663.0 mm |
| Thickness Baseplate | 9.0 mm |
| Operating Weight | 99.1 kg |
| Ground Clearance | 663.0 mm |
| Effective Power | 3.6 KW |
| Normal Engine Speed | 3,600.0 1/min |
| HAV Summation (Average Value) | 4.1 m/s2 |
| HAV Summation (Standard) | EN 500-4 |
