5100066076

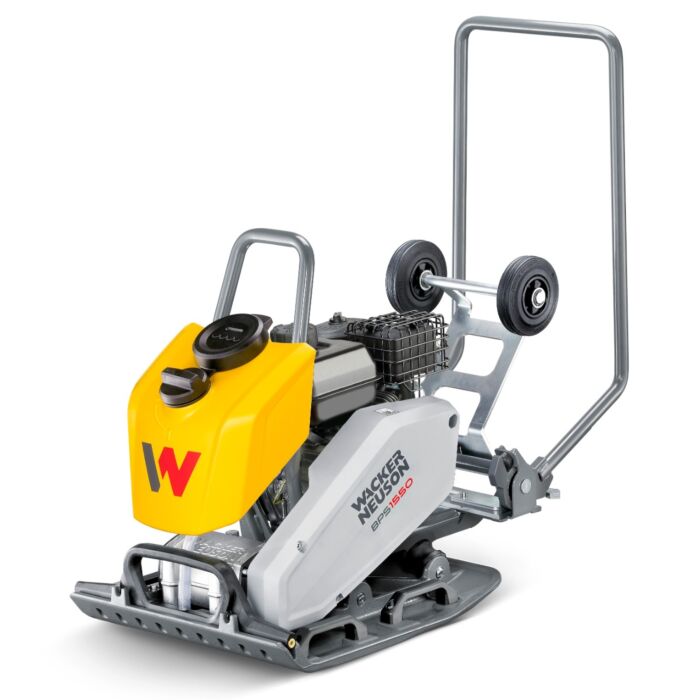

Wacker Neuson BPS1550BW Plate 500mm/20 Inch with Water Kit

Out of stock

Product Information

BPS1550Bw Single-Direction Vibratory Plate

Experience superior handling and maneuverability with the BPS1550Bw single-direction vibratory plate. Renowned for its exceptional performance on both soil and asphalt, the BPS series sets the standard for outstanding handling capabilities. Moving and turning on fresh asphalt surfaces is a comfortable experience, delivering clean finishes without any marks. Achieving clean finishes at curbs is effortless, thanks to the angular side edges of the base plate. The guide handle responds precisely to steering movements, ensuring optimal control while maintaining low hand-arm vibrations of less than 5 m/s², enabling prolonged and comfortable working conditions.

Key Features:

  • Outstanding Handling: Move and turn with ease on fresh asphalt surfaces, delivering clean finishes without marks.
  • Precise Steering: The guide handle responds accurately to steering movements, maintaining low hand-arm vibrations for extended comfort.
  • Effortless Curbs: Easily achieve clean finishes at curbs, facilitated by the angular side edges of the base plate.

Specification

More Information
SKU5100066076
Barcode5061043462212
BrandWacker Neuson
ModelBPS1550Bw
Weight89.500000
Centrifugal Force15 kN
Area Capacity750.0 m2/h
Forward Running25.0 m/min
Gradeability36.4 %
Vibrations (Hz)98.0 Hz
Length Baseplate599.0 mm
Width Baseplate500.0 mm
Height Cover frame663.0 mm
Thickness Baseplate9.0 mm
Operating Weight89.5 kg
Ground Clearance663.0 mm
Effective Power3.6 KW
Normal Engine Speed3,600.0 1/min
HAV Summation (Average Value)4.1 m/s2
HAV Summation (Standard)EN 500-4
