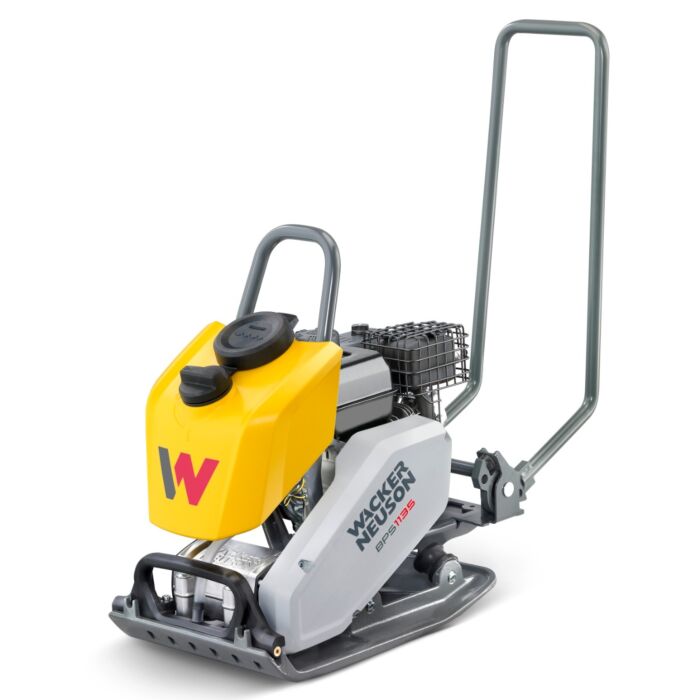

Wacker Neuson BPS1135BW Plate 350mm/14 Inch with Water Kit
Out of stock
£1,230.00 £1,025.00
Frequently Bought Together
- This Item: £1,230.00 £1,025.00
- Wacker Neuson Wheel Kit BPS Plates - BPS1030, BPS1135, BPS1340 £270.00 £225.00
- Wacker Neuson Paving Mat Kit For 350mm Plate - BPS1135, BPS1135 £238.80 £199.00
Product Information
The Wacker Neuson BPS1135Bw vibratory plate excels in handling and maneuverability, making it an ideal choice for compacting soil and asphalt. Designed for superior performance, it ensures smooth and clean finishes even in challenging conditions.
Key Features:
- High Compaction Force: With a centrifugal force of 11 kN and an area capacity of 546 m²/h, this plate efficiently handles compacting tasks, providing reliable results on both soil and asphalt surfaces.
- Exceptional Maneuverability: The angular side edges of the base plate and the centrally mounted guide handle allow for precise control and easy maneuvering, even around curbs and tight spaces.
- Comfortable Operation: Low hand-arm vibrations of less than 5 m/s² enhance operator comfort, making it suitable for prolonged use without discomfort.
- Robust Construction: The BPS1135Bw features a 5 mm thick baseplate and a total operating weight of 63 kg, combining durability with ease of handling.
- Convenient Water System: Equipped with a large 8-liter water tank and an efficient sprinkler system, it ensures optimal performance and prevents asphalt from sticking to the baseplate.
The BPS1135Bw is perfect for professionals seeking a robust and versatile vibratory plate that combines high performance with operational ease.
Specification
| SKU | 5100065704 |
|---|---|
| Barcode | 5061043462243 |
| DIrection | Single Direction |
| Brand | Wacker Neuson |
| Model | BPS1135Bw |
| Weight | 63.000000 |
| Centrifugal Force | 11 kN |
| Area Capacity | 546.0 m2/h |
| Forward Running | 26.0 m/min |
| Gradeability | 36.4 % |
| Vibrations (Hz) | 98.0 Hz |
| Length Baseplate | 599.0 mm |
| Width Baseplate | 350.0 mm |
| Height Cover frame | 663.0 mm |
| Thickness Baseplate | 5.0 mm |
| Operating Weight | 63.0 kg |
| Ground Clearance | 663.0 mm |
| Effective Power | 2.6 KW |
| Normal Engine Speed | 3,600.0 1/min |
| HAV Summation (Average Value) | 4.5 m/s2 |
| HAV Summation (Standard) | EN 500-4 |
