5100065702

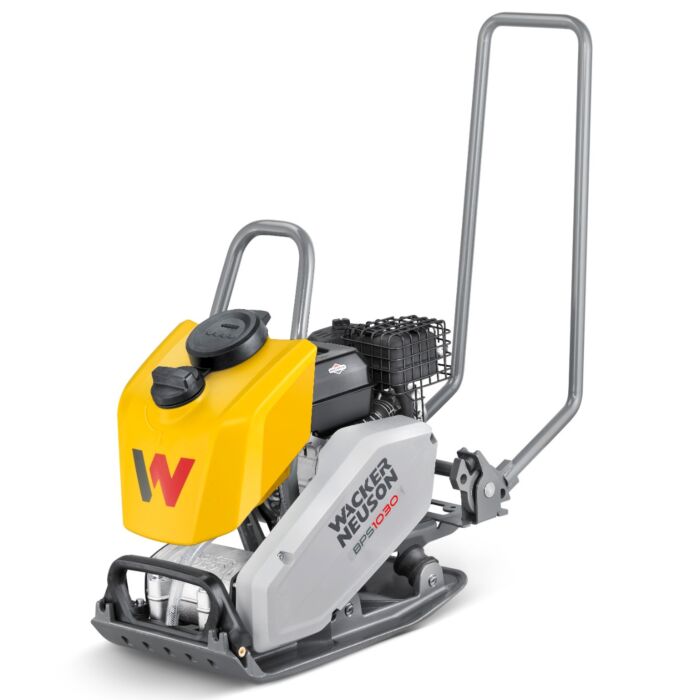

Wacker Neuson BPS1030BW Plate 300mm/12 Inch With Water Kit
Out of stock
£1,110.00 £925.00
Frequently Bought Together
- This Item: £1,110.00 £925.00
- Wacker Neuson Wheel Kit BPS Plates - BPS1030, BPS1135, BPS1340 £270.00 £225.00
- Wacker Neuson Paving Mat Kit For 300mm Plate - BPS1030, BPS1030 £216.00 £180.00
Product Information
The BPS1030Bw vibratory plate delivers exceptional handling and precise maneuverability, making it a top choice for soil and asphalt compaction. Its advanced design ensures clean finishes without leaving marks, even on fresh asphalt. Angular side edges make it easy to achieve precise finishes at curbs, while the responsive guide handle allows for smooth control with minimal hand-arm vibrations (less than 5 m/s²). This ensures long, comfortable working sessions.
Key Features:
- Unmatched Maneuverability: Effortlessly moves and turns on asphalt, delivering clean, professional results.
- Low HAV Design: Hand-arm vibrations below 5 m/s² enable extended working conditions without fatigue.
- Compact and Efficient: Operates at a forward speed of 26 m/min with an area capacity of 500 m²/h.
- Durable Base Plate: Angular edges for curb finishes, 5mm thick for lasting durability.
- Optional Water Tank: Features an 8-litre tank with an efficient sprinkler system (sold separately).
Perfect for contractors and professionals, the BPS1030Bw vibratory plate combines user comfort with robust performance to handle demanding compaction tasks with ease.
Specification
| SKU | 5100065702 |
|---|---|
| Barcode | 5061043462250 |
| DIrection | Single Direction |
| Brand | Wacker Neuson |
| Model | BPS1030Bw |
| Weight | 56.000000 |
| Centrifugal Force | 10 kN |
| Area Capacity | 500 m2/h |
| Forward Running | 26 m/min |
| Gradeability | 36.4% |
| Length Baseplate | 599mm |
| Width Baseplate | 320mm |
| Height Cover frame | 663mm |
| Thickness Baseplate | 5mm |
| Operating Weight | 56kg |
| Ground Clearance | 663mm |
| Effective Power | 2.6kw |
| Normal Engine Speed | 3,600 1/min |
| HAV Summation (Average Value) | 4.6 m/s2 |
| HAV Summation (Standard) | EN 500-4 |
