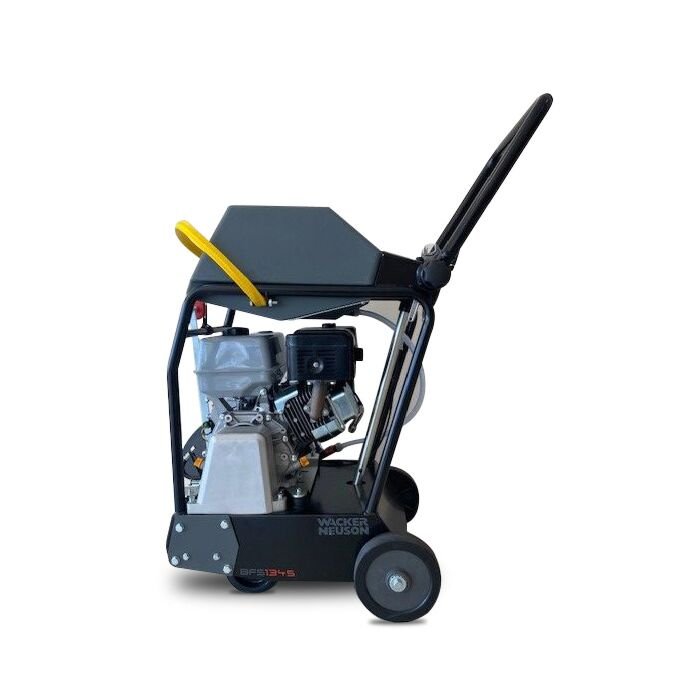

Wacker Neuson BFS1345A Floor Saw 450mm/18 Inch

Out of stock
Frequently Bought Together

Product Information

The Wacker Neuson BFS1345A Floor Saw is designed for maximum cutting speed and smooth operation, providing unparalleled cutting performance in its class. With a low vibration level of 4.9 m/s², it ensures comfortable and efficient use. The torque transmitted to the diamond blade and the optimal center of gravity allow the majority of the engine's power to be effectively used for cutting asphalt or concrete, resulting in cuts up to 20% faster than comparable products.

Key Features:

  • Low Vibration: HAVS - 4.9 m/s² for comfortable operation.
  • Superior Cutting Performance: Efficient power transmission for fast and smooth cuts.
  • Optimal Power Utilisation: Engine power is directed where it is needed most.

Technical Specifications:

Engine ModelWacker Neuson Honda
Span Width Max12.0 mm
Cutting Depth Max17.0 cm
Circumferential Speed (Wheel 350mm)40.3 m/s
Operating Speed (Cutting Wheel)2,200.0 1/min
Length (Wheel Raised)860.0 mm
Width575.0 mm
Height (On Trailer)1,010.0 mm
Weight93.00 kg
Cutting Wheel Diameter Min350 mm
Cutting Wheel Diameter Max450 mm
Mounting Hole of Wheel25.400 mm
Effective Power8.7 KW
Nominal Engine Speed3,600.0 1/min
Water Tank Capacity32.0 l
Storage Temperature Range-30 - 50 °C
Operating Temperature Range-15 - 40 °C
Sound Level LpA89.0 dB (A)
Sound Power LWA (Measured)105.0 dB (A)
Sound Power LWA (Guaranteed)107.0 dB (A)
TransmissionKRR
Breaker Switch On/OffYes
Sound Level LpA (Standard)DIN EN 13862
Sound Power LWA (Standard)DIN EN 13862
Vibration Value (Standard)DIN EN 13862
Circumferential Speed (Wheel 400mm)46.1 m/s
Vibration Total Value ahv4.9 m/s²
Uncertainty in Measurement HAV1.5 m/s²
Circumferential Speed (Wheel 450mm)51.8 m/s

Specification

More Information
SKU5100054575
Barcode5061043461291
ConditionNew
BrandWacker Neuson
ModelBFS1345A
Power8.7 KW
Motor SpecificationLoncin Air-cooled, single cylinder, 4-cycle gasoline engine
Maximum Cutting Depth17.0 cm
Maximum Cutting Diameter450 mm
Weight93.000000
Height1,010.0 mm
Width575.0 mm
Length860.0 mm
